Cell Segmentation in Microscopy Images

SEED = 7493418  # RNG seed
IMAGE_SIZE = 128  # pixels per side; kept small for fast tests
N_CELLS = 8  # number of cells to place
CELL_SIGMA = 6  # Gaussian half-width of each cell (pixels)
CELL_BRIGHTNESS = 1.0  # peak intensity (image values are in [0, 1])
NOISE_SCALE = 0.15  # std dev of additive Gaussian noise

# Minimum centre-to-centre separation that keeps midpoint intensity below the
# operating threshold of 0.5.  For two Gaussians of amplitude A and sigma σ
# separated by distance d, the midpoint value is 2A·exp(−d²/(8σ²)).
# Setting this below 0.5 gives d > 2σ·sqrt(2·ln(4A)) = 2·6·sqrt(2·ln(4)) ≈ 19.8.
# We use 24 pixels for a comfortable margin.
MIN_SEPARATION = 24

def make_image(
    n_cells=N_CELLS,
    sigma=CELL_SIGMA,
    brightness=CELL_BRIGHTNESS,
    noise_scale=NOISE_SCALE,
    image_size=IMAGE_SIZE,
    seed=SEED,
):
    """Return (image, centers) for a synthetic fluorescence image.

    Each cell is a 2-D Gaussian with peak `brightness` and width `sigma`.
    Independent Gaussian noise with std dev `noise_scale` is added to every
    pixel.  Pixel values are clipped to [0, 1].  `centers` is a list of
    (x, y) pixel coordinates of the true cell centres.
    """
    rng = np.random.default_rng(seed)
    centers = _place_cells(n_cells, image_size, MIN_SEPARATION, rng)

    ys, xs = np.mgrid[0:image_size, 0:image_size]
    image = np.zeros((image_size, image_size))
    for cx, cy in centers:
        image += brightness * np.exp(
            -0.5 * ((xs - cx) ** 2 + (ys - cy) ** 2) / sigma**2
        )
    image += rng.normal(0.0, noise_scale, image.shape)
    image = np.clip(image, 0.0, None)  # negative counts are unphysical
    return image, centers

def smooth(image, sigma=SMOOTH_SIGMA):
    """Return the image after 2-D Gaussian smoothing with the given sigma."""
    return ndimage.gaussian_filter(image.astype(float), sigma=sigma)

def segment(image, threshold=THRESHOLD, min_size=MIN_CELL_SIZE):
    """Return (labeled, n_cells) from a smoothed image.

    Steps:
    1. Threshold to a binary mask (pixels above `threshold` → True).
    2. Label connected components with scipy.ndimage.label.
    3. Discard components smaller than `min_size` pixels.

    `labeled` is an integer array where 0 is background and 1..n_cells
    are the detected cells.  Components are re-numbered consecutively
    after size filtering so the label values are always contiguous.
    """
    binary = image > threshold
    raw_labeled, n_raw = ndimage.label(binary)

    # Filter by size and re-number labels.
    filtered = np.zeros_like(raw_labeled)
    new_label = 1
    for old_label in range(1, n_raw + 1):
        if np.sum(raw_labeled == old_label) >= min_size:
            filtered[raw_labeled == old_label] = new_label
            new_label += 1

    return filtered, new_label - 1

def cell_sizes(labeled):
    """Return an array of pixel counts, one per detected cell."""
    n = labeled.max()
    return np.array([np.sum(labeled == i) for i in range(1, n + 1)])

SMOOTH_SIGMA = 2.0  # std dev of the Gaussian smoothing kernel (pixels)

# After smoothing, cell peak brightness ≈ σ²/(σ²+σ_s²) = 36/40 ≈ 0.90.
# Threshold 0.5 sits comfortably below 0.90 and well above the smoothed-noise
# ceiling (≈ 5× the smoothed-noise std dev of 0.021; see lesson for derivation).
THRESHOLD = 0.50

# Expected cell area at the operating threshold ≈ π·r_t² where
# r_t = sqrt(−2·ln(threshold/peak)) · σ_eff ≈ 1.085 · 6.32 ≈ 6.9 px, area ≈ 148 px².
# MIN_CELL_SIZE is set well below this to keep real cells while removing noise blobs.
MIN_CELL_SIZE = 30  # minimum pixel count for a detected cell

def make_pure_noise(noise_scale=NOISE_SCALE, image_size=IMAGE_SIZE, seed=SEED):
    """Return an image containing only Gaussian noise, no cell signal.

    Used to demonstrate the false-positive behaviour of the segmentation
    pipeline when the threshold is set below the noise floor.
    """
    rng = np.random.default_rng(seed)
    return np.maximum(rng.normal(0.0, noise_scale, (image_size, image_size)), 0.0)

import numpy as np
from generate_image import make_image, make_pure_noise, N_CELLS, IMAGE_SIZE
from cellseg import smooth, segment, cell_sizes, THRESHOLD


def test_smooth_reduces_noise():
    # Gaussian smoothing must reduce pixel-to-pixel variance.
    rng = np.random.default_rng(7)
    noise = rng.normal(0, 1, (64, 64))
    assert smooth(noise, sigma=2).var() < noise.var()


def test_smooth_preserves_shape():
    image = np.ones((IMAGE_SIZE, IMAGE_SIZE))
    assert smooth(image).shape == image.shape


def test_smooth_constant_unchanged():
    # Smoothing a uniform image must leave interior values unchanged.
    image = np.full((50, 50), 0.7)
    result = smooth(image, sigma=2)
    interior = result[4:-4, 4:-4]
    assert np.allclose(interior, 0.7, atol=1e-6)

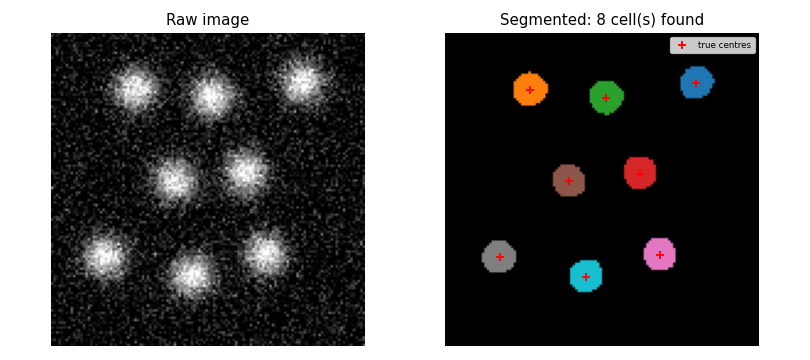

def test_segment_finds_all_cells():
    # With default parameters the pipeline must recover all N_CELLS cells.
    image, centers = make_image()
    labeled, n_found = segment(smooth(image))
    assert n_found == N_CELLS, f"Expected {N_CELLS} cells, found {n_found}"


def test_cell_sizes_reasonable():
    # Every detected cell must have a pixel area in the physically plausible range.
    # At the operating threshold the analytic area is ≈ 148 px²; we allow 50–350 px²
    # to accommodate smoothing and noise effects without being unnecessarily tight.
    image, _ = make_image()
    labeled, _ = segment(smooth(image))
    sizes = cell_sizes(labeled)
    assert np.all(sizes >= 50), f"Cell too small: {sizes.min()} px"
    assert np.all(sizes <= 350), f"Cell too large: {sizes.max()} px"


def test_threshold_above_max_finds_nothing():
    # A threshold above the maximum smoothed value must produce zero cells.
    image, _ = make_image()
    labeled, n_found = segment(smooth(image), threshold=999.0)
    assert n_found == 0

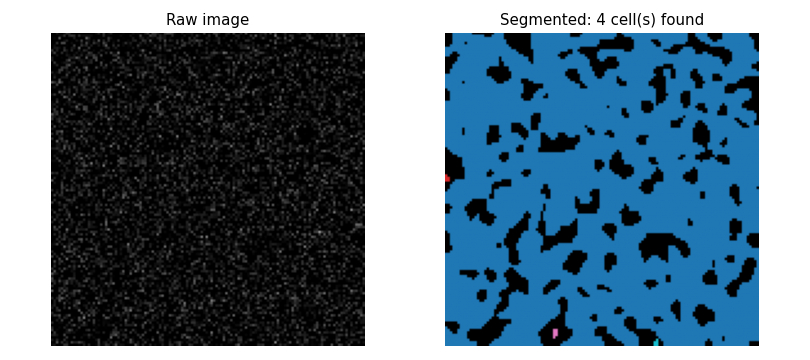

def test_pure_noise_false_positives():
    # At a threshold of 0.05, pure noise produces false detections.
    # Smoothed noise std dev ≈ NOISE_SCALE / (2·sqrt(π)·SMOOTH_SIGMA) ≈ 0.021;
    # 0.05 ≈ 2.4σ, so roughly 0.8% of pixels exceed it, forming several blobs.
    noise = make_pure_noise()
    _, n_false = segment(smooth(noise), threshold=0.05)
    assert n_false > 0, "Expected false positives from pure noise at threshold 0.05"

    # At the operating threshold (0.50 ≈ 24σ) pure noise must not trigger any cell.
    _, n_safe = segment(smooth(noise), threshold=THRESHOLD)
    assert n_safe == 0, "Operating threshold should reject all noise blobs"
